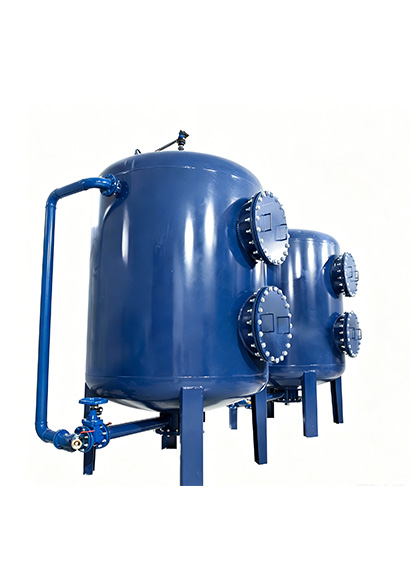

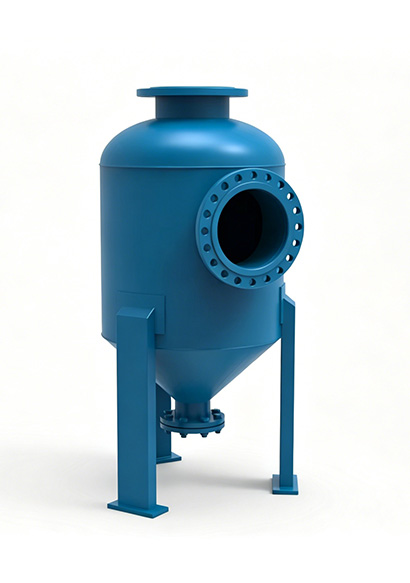

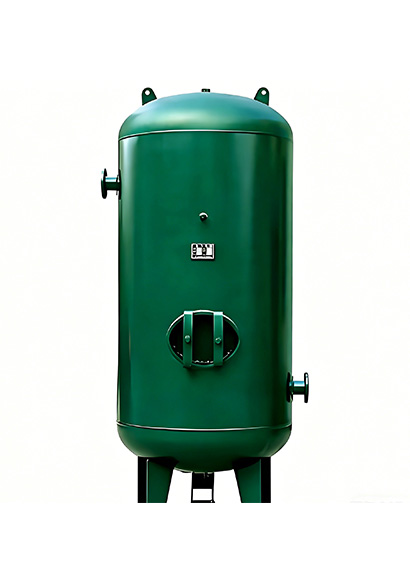

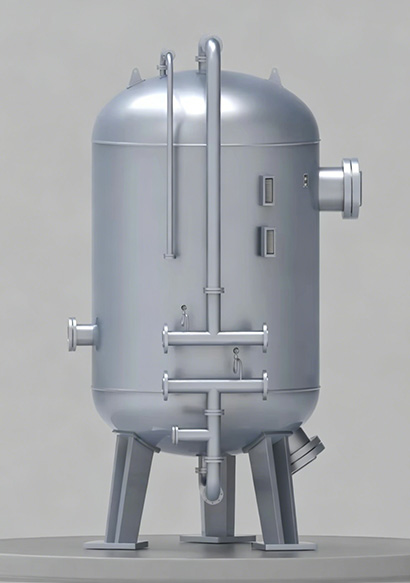

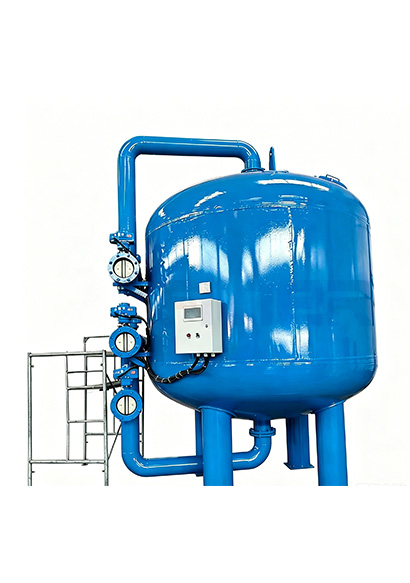

The activated carbon media filter is a professional water purification equipment with high-quality activated carbon as the main filter material. It adopts physical interception and adsorption filtration to effectively remove residual chlorine, odor, color, organic matter, heavy metals and suspended solids from water. It is widely used in water pre-treatment, sewage treatment, circulating water systems and drinking water purification.
Email:
xxhuaqing@126.comPhone:
+86 159365252321. Excellent Purification Performance: Effectively dechlorinate, deodorize, decolor and remove organic pollutants.
2. Low Operation Cost: Runs by water pressure with almost zero energy consumption, easy to operate.
3. Easy Maintenance: Equipped with backwash function. The filter material has long service life and low replacement cost.
4. Space-saving: Compact structure, small footprint, flexible installation.
5. Durable Material: Carbon steel with anti-corrosion coating or 304/316 stainless steel, corrosion resistant and long service life.
6. Wide Compatibility: Can be used alone or combined with other water treatment equipment.
Water flows through the activated carbon bed. With its rich micropore structure and large specific surface area, activated carbon intercepts solid impurities, adsorbs peculiar smell, residual chlorine and organic pollutants. A biofilm will form on the filter layer to further decompose contaminants, realizing efficient deep water purification. No chemical additives are required during operation.
Industrial production water for food, beverage, pharmaceutical, chemical, electronics industries
Domestic drinking water purification for communities and factories
Deep treatment of industrial wastewater and sewage
Circulating water for swimming pools, central air conditioning and landscape water
Pre-treatment for RO and ultra-pure water systems
| Model | Tank specifications | Import and export specifications | Maximum flow rate (t/h) | Pressure (kg) | Quartz sand filter material (tons) |
| LF-SYS500 | φ500*2150 | DN50 | 2 | 10 | 0.35 |
| LF-SYS600 | φ600*2250 | DN50 | 3 | 10 | 0.5 |
| LF-SYS800 | φ800*2450 | DN65 | 5 | 10 | 0.8 |
| LF-SYS1000 | φ1000*2550 | DN65 | 8 | 10 | 1.3 |
| LF-SYS1200 | φ1200*2650 | DN65 | 12 | 10 | 1.9 |
| LF-SYS1500 | φ1500*2850 | DN80 | 18 | 10 | 2.9 |
| LF-SYS1600 | φ1600*2950 | DN80 | 20 | 10 | 3.5 |
| LF-SYS1800 | φ1800*3050 | DN100 | 25 | 10 | 4.3 |
| LF-SYS2000 | φ2000*3150 | DN100 | 30 | 10 | 5.6 |
| LF-SYS2200 | φ2200*3300 | DN125 | 40 | 10 | 6.5 |
| LF-SYS2400 | φ2400*3400 | DN125 | 50 | 10 | 7.8 |
| LF-SYS2500 | φ2500*3450 | DN125 | 60 | 10 | 8.75 |
| LF-SYS2600 | φ2600*3450 | DN150 | 70 | 10 | 9.3 |
| LF-SYS2800 | φ2800*3600 | DN150 | 80 | 10 | 11.5 |
| LF-SYS3000 | φ3000*3900 | DN219 | 100 | 10 | 12.2 |
| LF-SYS3200 | φ3200*4500 | DN219 | 120 | 10 | 14 |
| LF-SYS3400 | φ3400*4600 | DN250 | 150 | 10 | 15.75 |
| LF-SYS3600 | φ3600*4650 | DN250 | 180 | 10 | 17.5 |
