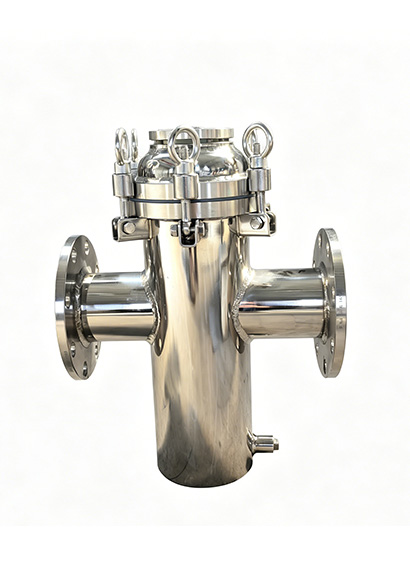

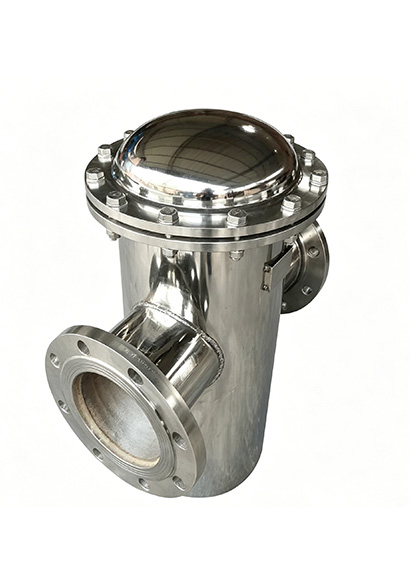

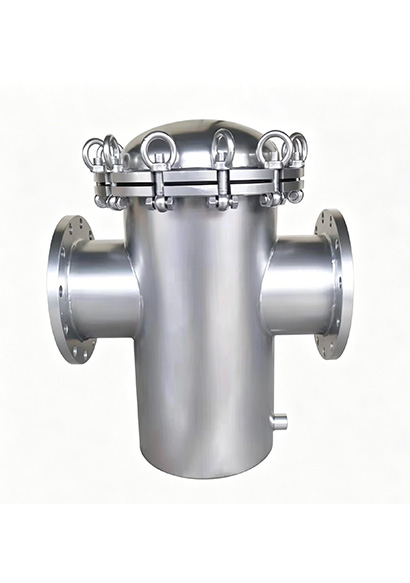

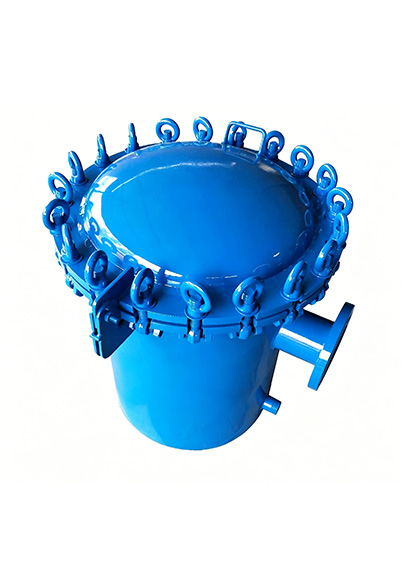

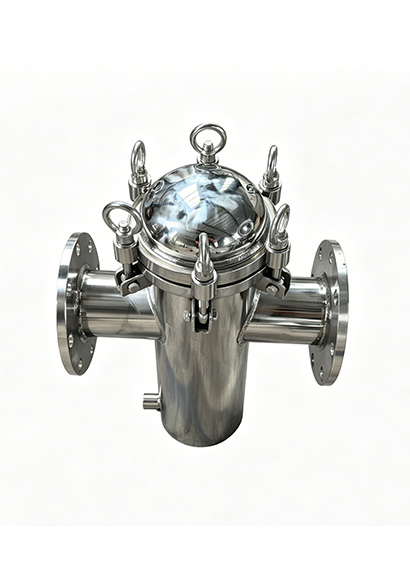

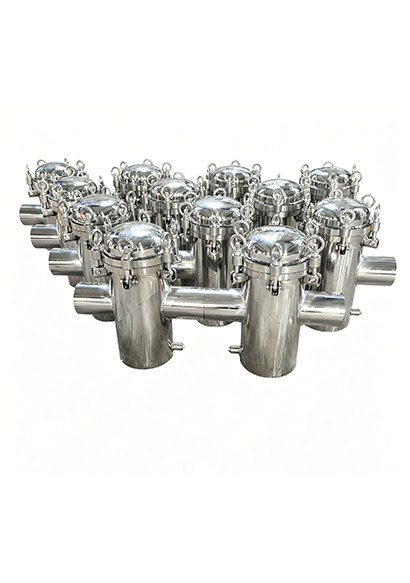

The basket strainer (basket filter) is a high-efficiency pipeline filtration device designed to remove solid impurities from liquid/gas media, protecting downstream pumps, valves, meters and other equipment from damage caused by debris. Widely used in petroleum, chemical, food, pharmaceutical, water treatment and HVAC industries, it is an essential "protective barrier" for industrial piping systems.
Email:
xxhuaqing@126.comPhone:
+86 15936525232Filtration Process: Fluid enters the filter body through the inlet, flows into the built-in filter basket. Impurities larger than the mesh size are trapped inside the basket, while clean fluid passes through the mesh and flows out from the outlet.
Maintenance Process: When the pressure difference between inlet and outlet reaches the set value, open the top cover (quick-opening design for easy operation), take out the filter basket, clean or replace it, then put it back into the filter body to resume operation.
| Feature | Description |
| High Filtration Precision | Customizable 10-500 mesh screens to meet different filtration requirements, effectively removing large particles and debris. |
| Optional Quick-Opening Design | Swing bolt or quick-release clamp structure, tool-free opening, greatly shortening maintenance time. |
| Large Dirt-Holding Capacity | The basket structure provides a large filtration area, reducing clogging frequency and extending service life. |
| Wide Compatibility | Suitable for various media (water, oil, gas, chemical liquids) and pressure/temperature conditions. |
| Customizable Materials | 304/316 stainless steel, carbon steel with anti-corrosion coating, etc., to adapt to different working environments. |
Petroleum & Chemical Industry: Filtration of crude oil, natural gas, and chemical solvents to protect pumps and pipelines from corrosion and blockage.
Food & Beverage Industry: Filtration of drinking water, syrup, and beverage raw materials, with food-grade stainless steel materials meeting hygiene requirements.
Water Treatment & HVAC Industry: Filtration of circulating water, cooling water, and tap water to prevent scale and debris from clogging heat exchangers and pipelines.
Pharmaceutical Industry: Filtration of pharmaceutical liquids and pure water to ensure the cleanliness and safety of the production process.
Regular Cleaning: Inspect the filter basket every 1-3 months (depending on media quality), clean with water or ultrasonic cleaning to remove debris.
Basket Replacement: If the filter basket is damaged or severely blocked, replace it with a new one of the same specifications.
Seal Inspection: Check the gasket under the top cover regularly to prevent leakage caused by aging or damage.
Pressure Monitoring: Pay attention to the pressure difference between inlet and outlet; if it exceeds 0.05MPa, clean the filter immediately.
| Model | Inlet/Outlet DN | Body Material | Optional Mesh Size | Working Pressure | Working Temperature |
| JYBF-25 | DN25 | SS304/SS316/Carbon Steel | 10-500 mesh | PN16/PN25 | -20℃~450℃ |
| JYBF-50 | DN50 | SS304/SS316/Carbon Steel | 10-500 mesh | PN16/PN25 | -20℃~450℃ |
| JYBF-100 | DN100 | SS304/SS316/Carbon Steel | 10-500 mesh | PN16/PN25 | -20℃~450℃ |
| JYBF-200 | DN200 | SS304/SS316/Carbon Steel | 10-500 mesh | PN16/PN25 | -20℃~450℃ |
| JYBF-300 | DN300 | SS304/SS316/Carbon Steel | 10-500 mesh | PN16/PN25 | -20℃~450℃ |
| Note: Custom sizes, materials, and configurations are available based on specific working conditions. | |||||
| Model | Inlet and outlet diameter (DN) | L(mm) | H(mm) | H1(mm) | D0(mm) | Sewage outlets |
| JYBF-25 | 25 | 220 | 260 | 160 | Φ130 | 1/2" |
| JYBF-32 | 32 | 230 | 270 | 160 | Φ130 | 1/2" |
| JYBF-40 | 40 | 280 | 300 | 170 | Φ150 | 1/2" |
| JYBF-50 | 50 | 280 | 300 | 170 | Φ150 | 3/4" |
| JYBF-65 | 65 | 300 | 360 | 210 | Φ150 | 3/4" |
| JYBF-80 | 80 | 350 | 400 | 250 | Φ200 | 3/4" |
| JYBF-100 | 100 | 400 | 470 | 300 | Φ200 | 3/4" |
| JYBF-125 | 125 | 480 | 550 | 360 | Φ250 | 1" |
| JYBF-150 | 150 | 500 | 630 | 420 | Φ250 | 1" |
| JYBF-200 | 200 | 560 | 780 | 530 | Φ300 | 1" |
| JYBF-250 | 250 | 660 | 930 | 640 | Φ400 | 1" |
| JYBF-300 | 300 | 750 | 1200 | 840 | Φ450 | 1" |
